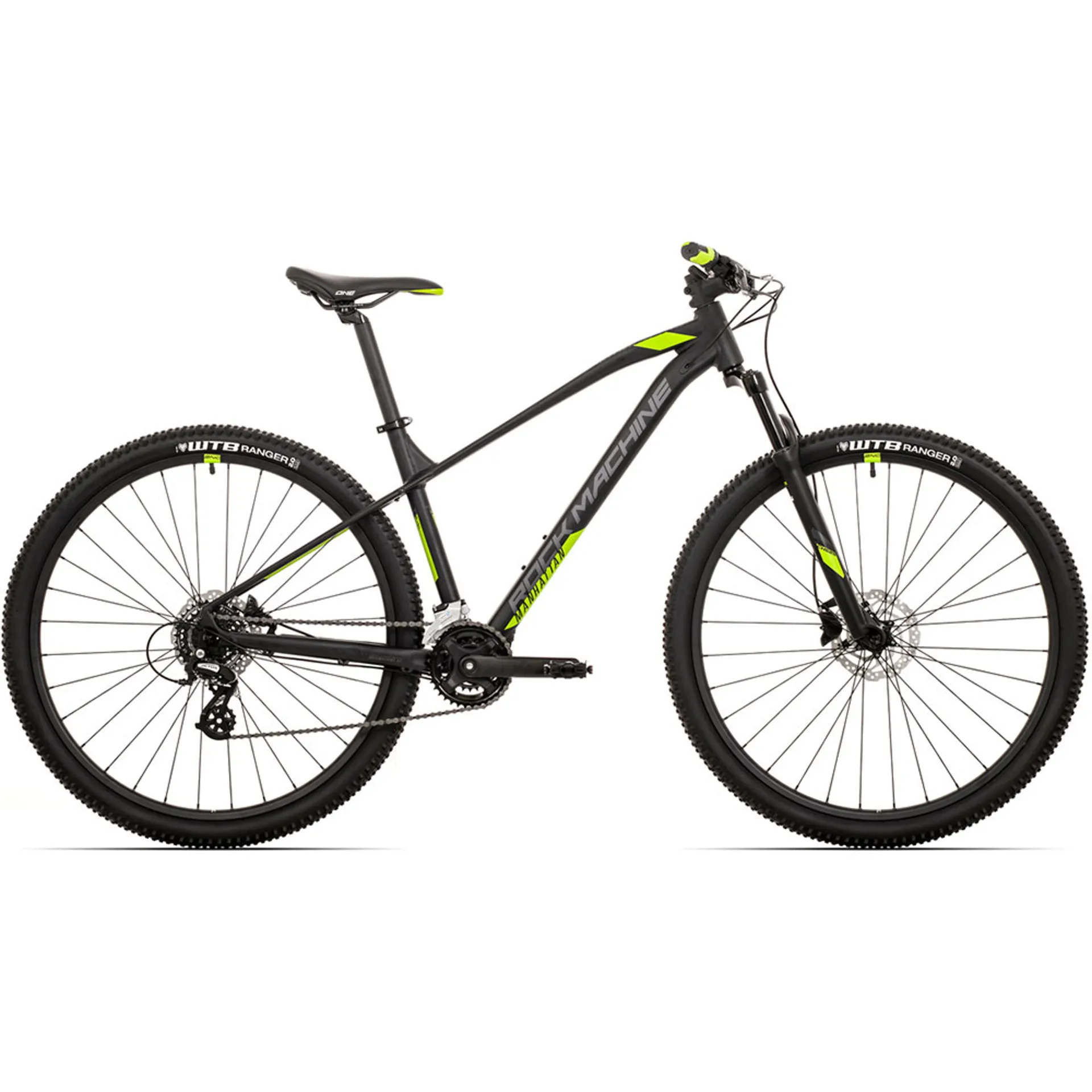

A quality aluminium frame with improved geometry for use from cycle tracks to trails. Thanks to the easy to maintain Shimano altus 2x7 set, comfortable suspension fork, and lightweight one1 accessories, the manhattan is great for everyone from weekend warriors to trail riders.
* new generation frame with fun ride geometry to maximize comfort & control on and off road
* Shimano altus 2x7 36-22 x 12-32
* Shimano disc brakes
* rise handlebar and shorter stem for higher comfort & control
* tyres wtb ranger comp, 29x2.20"
**frameset**
* **colour:** matte black/dark grey/radioactive yellow
* **frame:** alloy al-6061 t6 custom tubing, fun ride geometry, shark spine evo2 29er, bb bsa 73mm, old 135x9, disc brake post mount, fender&kickstand ready dropout, replaceable rd hanger, inner cable routing
* **head set:** fsa no.10 semi-cartridge, 1-1/8â
* **fork:** zoom 525s ams, 1-1/8", coil, qr type, 100mm travel
* **sizes:** 15.0"(s), 17.0"(m), 19.0"(l), 21.0"(xl)
**drivetrain**
* **gears: 2x7
* **shifter:** Shimano st-ef505-2l, 2-speed Shimano st-ef505-7r, 7-speed
* **front derailleur:** Shimano fd-m315-ts, top swing, dual-pull
* **rear derailleur:** Shimano rd-m310
* **crankset:** samox sac38731ss, 36-22t
* **cassette:** Shimano cs-hg200-7, 12-32t
* **bottom bracket:** Shimano bb-un101 122.5mm, bsa, shell 73mm
* **chain:** kmc z8.3
* **pedals:** marwi sp-610
**components**
* **handlebar:** one1 alloy, MTB al-325bt, 6deg upsweep, 9deg backsweep, 25mm rise, 700mm, 31.8mm
* **stem:** one1 tds-c342 alloy, 31.8xe60mm, +3deg
* **grips:** one1 vl-g1325d2
* **brakes:** Shimano st-ef505/br-mt200, 160/160 rotor, hydraulic disc brake
* **saddle:** one1 xc
* **seat post:** one1 sport alloy, sp c207, 30.9x350mm
**wheels**
* **front hub:** Shimano tx hb-tx505, 32h, center lock, qr type
* **rear hub:** Shimano ty fh-ty505-7, 32h, center lock, m10x135mm, qr type
* **rims:** stars j20s, 32h
* **tyres:** wtb ranger comp, 29x2.00"
* **spokes:** sapim galvanized black
**weight**
* 14.6 kg (m size)
**please note: bike specification may be subject to change without notice**
