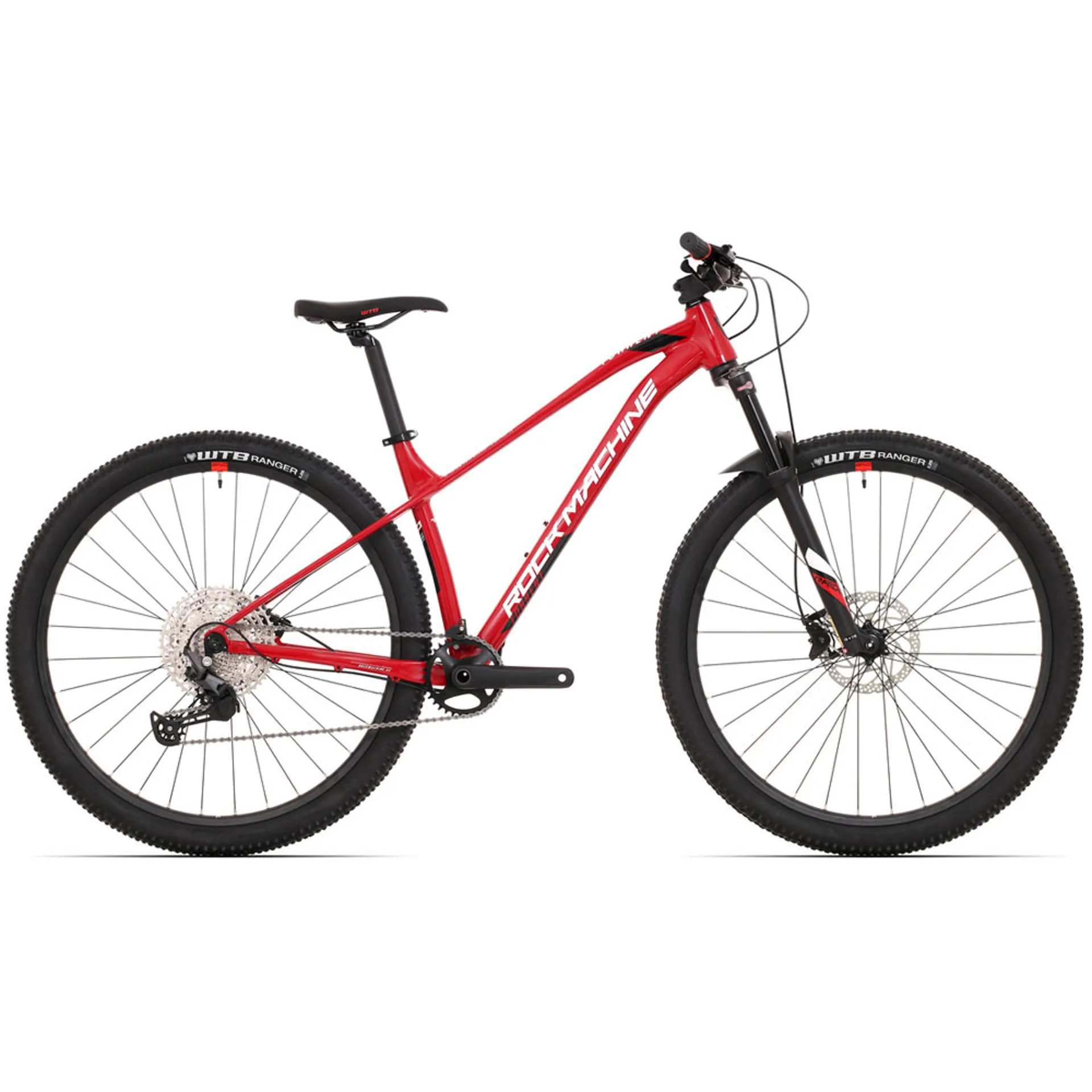

A 29" sports bike with trail advanced geometry for better comfort and control on trails. A perfectly worked out aluminium frame with internal cables is a great partner on the trail, as well as during trips or sports training. The bike is equipped with the Shimano deore 1x11 set with a wide range of gear, suntour raidon 32 air fork, remote suspension lockout, hydraulic Shimano disc brakes, and quality one1 accessories. Moreover, this model is also built-in 23â for really tall xxl bikers.
* updated 2nd gen frame with trail advanced geometry to maximize comfort&control on trails
* new Shimano deore 1x11 34 x 11-51
* SR Suntour raidon32 air fork (120 mm)
* Shimano disc brakes
* rise handlebar and shorter stem for higher comfort&control
* tyres wtb ranger comp, 29x2.25"
**frameset**
* colour: gloss dark red/black/white
* frame: alloy al-6061 t6 custom Pro tubing, trail advanced geometry, shark spine evo2 29er, bb bsa 73mm, tapered head tube, boost 148x12, disc brake post mount, replaceable rd hanger, inner cable routing, e-type mount, smooth welding
* head set: fsa orbit 1.5e no.57b, zero stack, 1-1/8"x1.5"
* fork: SR Suntour raidon32 rlr, tapered, 15x110mm axle, remote lockout, 120mm travel
* sizes: 19.0"(l),
**drivetrain**
* gears: 1x11
* shifter: Shimano deore sl-m5100-ir rapidfire plus, 11-speed
* rear derailleur: Shimano deore rd-m5100 shadow plus
* crankset: one1 boost, 34t
* cassette: Shimano deore cs-m5100-11, 11-51t
* bottom bracket: Shimano sm-bb52, bsa, shell 73mm
* chain: kmc x11
* pedals: pedals not included
**components**
* handlebar: one1 alloy, MTB al-325bt, 6deg upsweep, 9deg backsweep, 25mm rise, 720mm, 31.8mm
* stem: one1 tds-c342 alloy, 31.8xe60mm, +3deg
* grips: one1 vl-g1661d2n, lock-on
* brakes: Shimano bl-mt4100/br-mt410, 180/180 rotor, hydraulic disc brake
* saddle: wtb volt sport
* seat post: one1 sport alloy, sp c255, 30.9x400mm
**wheels**
* front hub: Shimano hb-mt400, 32h, center lock, 15x110mm thru type axle
* rear hub: Shimano fh-mt400-b, 32h, center lock, 12x148mm thru type axle
* rims: stars j20s, 32h
* tyres: wtb ranger comp, 29x2.25"
* spokes: sapim galvanized black
* weight: 12.9 kg (m size)
